Architectural Corn Window with Sliding Doors

Architectural Corner Lift & Slide System

Zero 1 Corner Window

MANUFACTURER - ES Finestra / MODEL - Zero 1 Corner Window

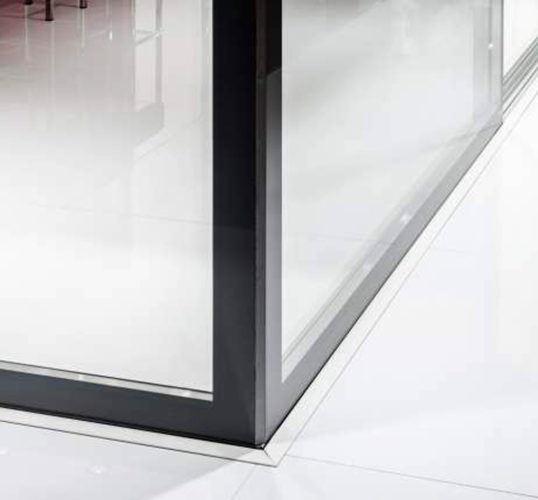

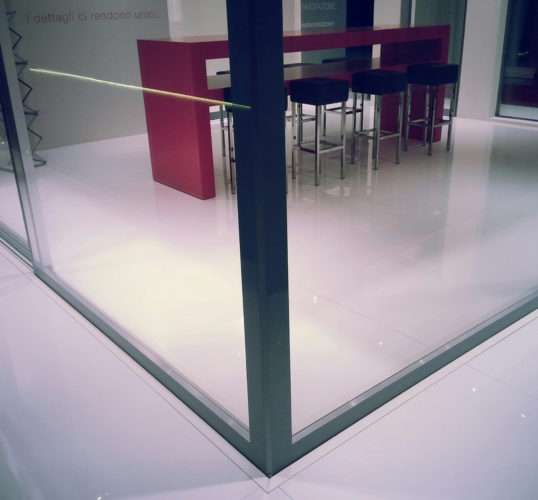

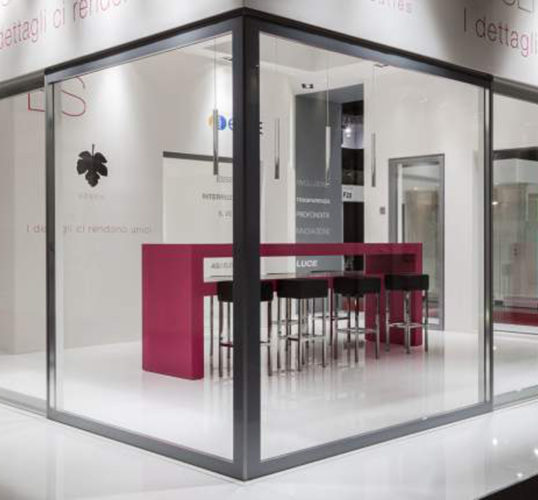

Fixed corner Zero 1 window with lift & slide

The ES Finestra Zero 1 corner window system has been designed as both corner glazing solution and aesthetic feature, creating a luxury glass envelope that opens up enclosed spaces, seamlessly melding the interior and exterior façades.

Specifiable with the ES Finestra Zero 1 lift and slide patio door system, the corner window system uses ES Finestra thermal break technology to maintain its passive U-values and high-performance soundproofing.

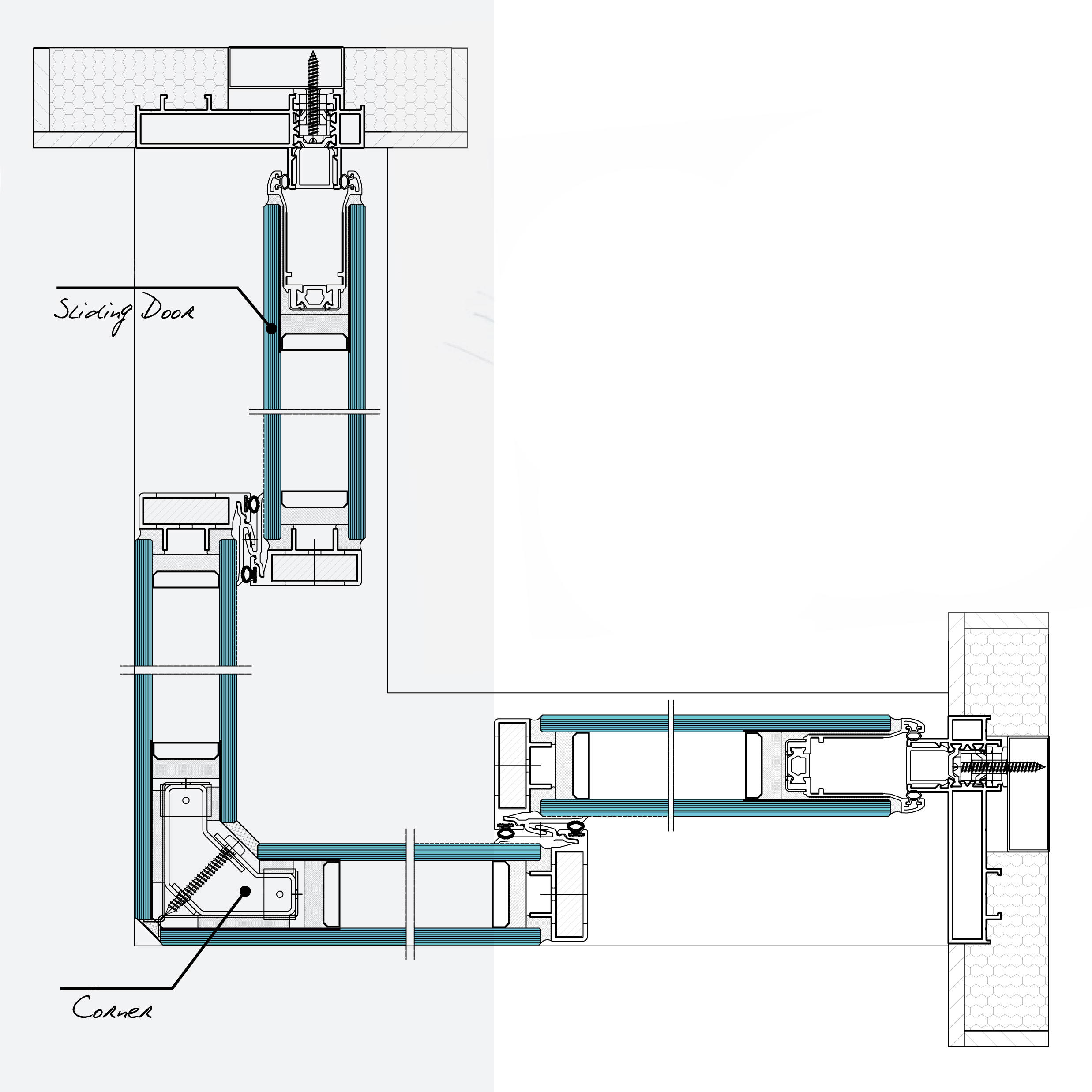

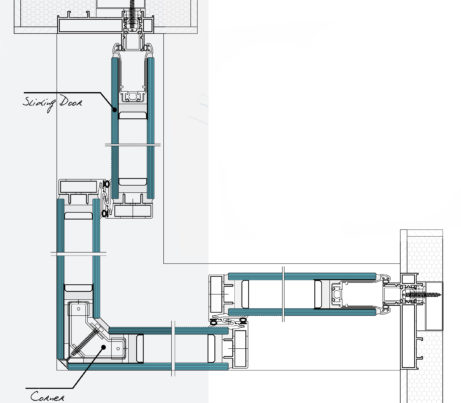

The corner section of the window system is created from a specialised ES Finestra fixed casement with sliding doors to either side.

Exterior rating

U-Value 0.8 w/m2k
Acoustic 40 dB
Air C4
Wind C4 & C5
Water E 900

ASK A QUESTION

Tel: 01371 873 313 [email protected]

+ Downloads & Brochures

Dimensions

	200 kg	300 kg
Mobile Sash Dimensions
Max. Surface Area	4.3 m2	6 m2
H Ratio	1:3	1:3
Min. Sash Dimensions	1.56 x 0.74 m	1.56 x 0.74 m

Fixed Sash dimensions
Max. Surface Area	7.2 m2	7.2 m2
Min. Sash Dimensions	1.56 x 0.74 m	1.56 x 0.74 m

Dimensions – (200 kg/300 kg)

Mobile Sash Dimensions
- Max. Surface Area – (4.3/6 m²)
- H Ratio – 1:3
- Min. Sash Dimensions – 1.56 x 0.74 m
Fixed Sash Dimensions
- Mac. Surface Area – 7.2 m²
- Min. Sash Dimensions – 1.56 x 0.74 m

Glazing

	Double Glazing	Triple Glazing
Standard	4+4/32/8T	4+4/12/6/14/8T
Toughened	8T/32/8T	8T/12/6/14/8T

Double Glazing
- 4+4/32/8T
- 8T/32/8T
Triple Glazing
- 4+4/12/6/14/8T
- 8T/12/6/14/8T

Profile Details

ES Finestra Casement Black
Frame Profile	Black Oxidated
Sash Profile	Black Oxidated
Threshold	Black Oxidated
Serigraphy	Black
Handle	PVD Black

ES Finestra Casement White
Frame Profile	White RAL 9010
Sash Profile	White RAL 9010
Threshold	Silver Oxidated
Serigraphy	White
Handle	Satin-Finished Chrome

ES Finestra Casement Grey
Frame Profile	Grey RAL 7042
Sash Profile	Grey RAL 7042
Threshold	Silver Oxidated
Serigraphy	Grey
Handle	Satin-Finished Chrome

ES Finestra Casement Black
- Frame Profile – Black Oxidated
- Sash Profile – Black Oxidated
- Threshold – Black Oxidated
- Serigraphy – Black
- Handle – PVD Black
ES Finestra Casement White
- Frame Profile – Painted White RAL 9010
- Sash Profile – Painted White RAL 9010
- Threshold – Silver Oxidated
- Serigraphy – White
- Handle – Satin-Finished Chrome
ES Finestra Casement Grey
- Frame Profile – Painted Grey RAL 7042
- Sash Profile – Painted Grey RAL 7042
- Threshold – Silver Oxidated
- Serigraphy – Grey
- Handle – Satin-Finished Chrome

Corner Window System

Downloads

	ES Finestra Product Catalogues	Size
	Zero 1 Corner Window Brochure	1.83mb
