MANUFACTURER - ES Finestra / MODEL - Zero 1 Lift-and-Slide

Increased thermal efficiency

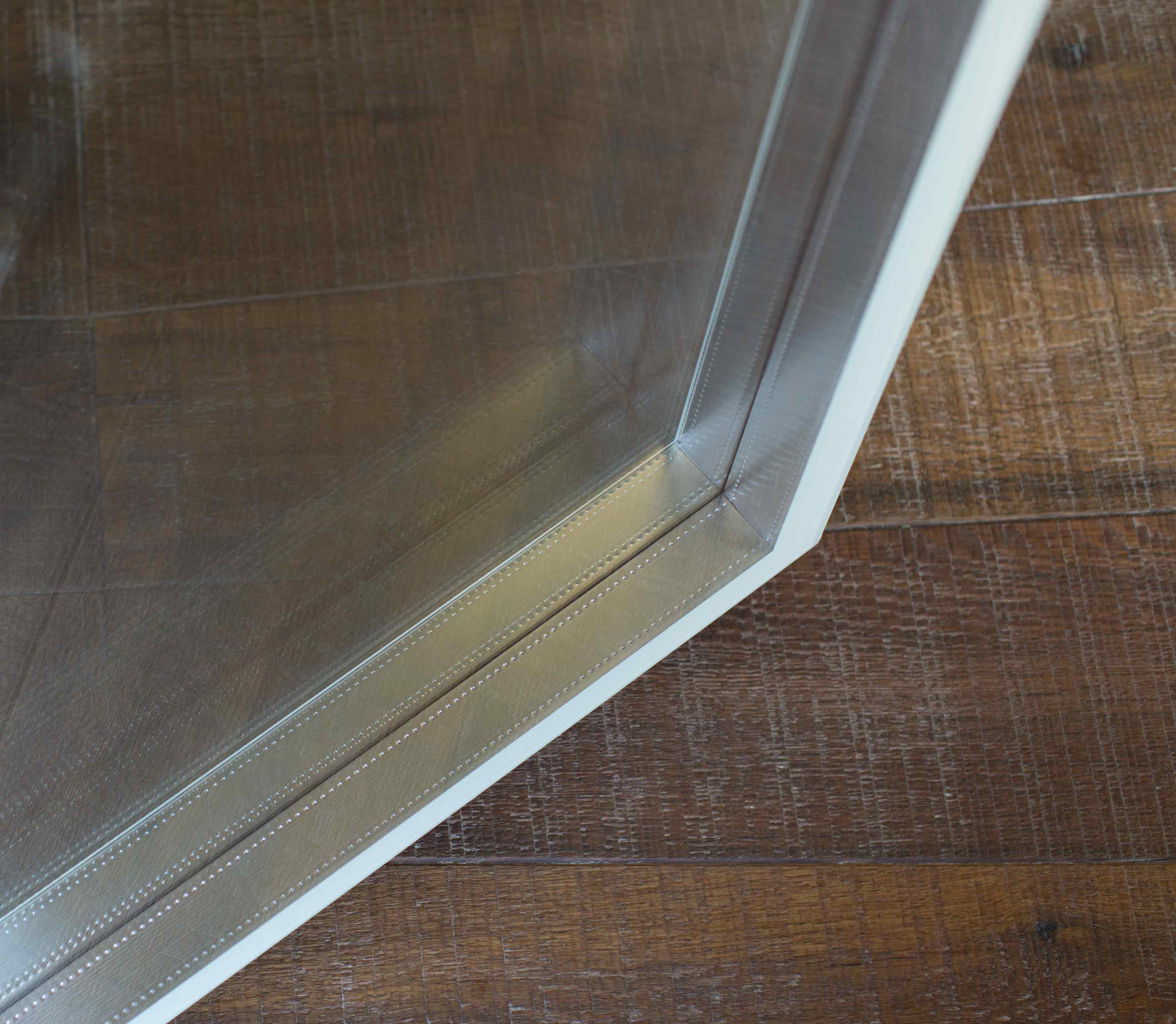

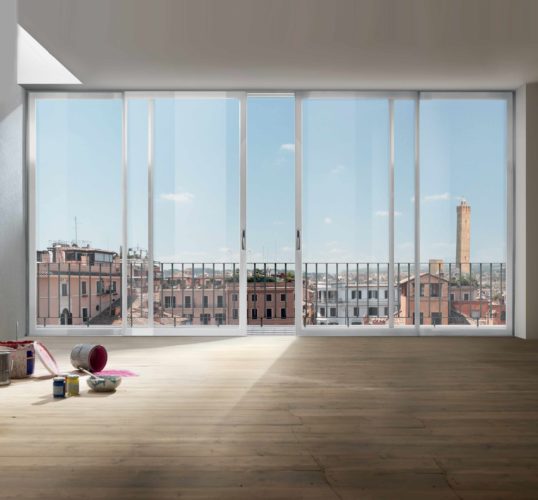

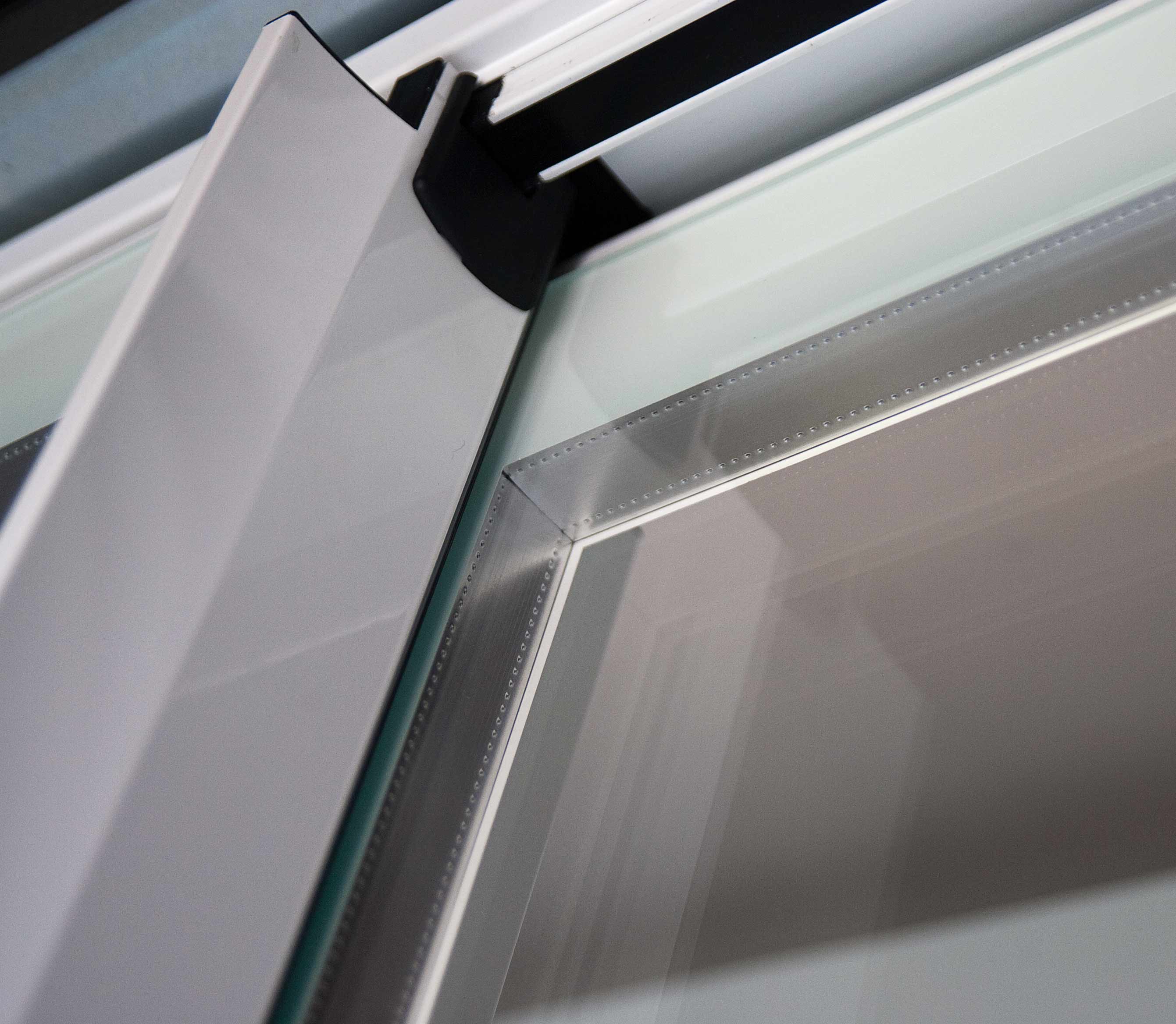

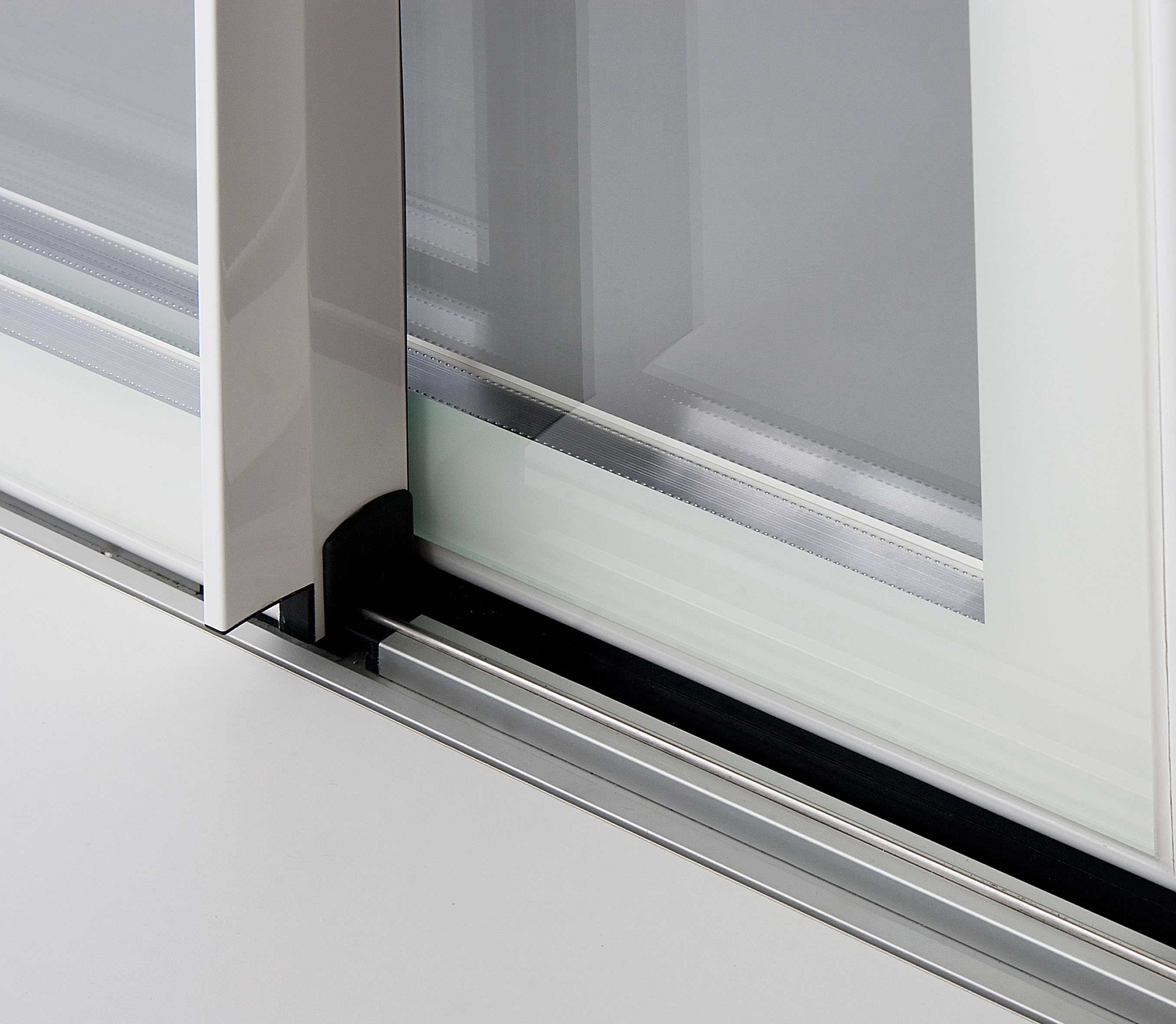

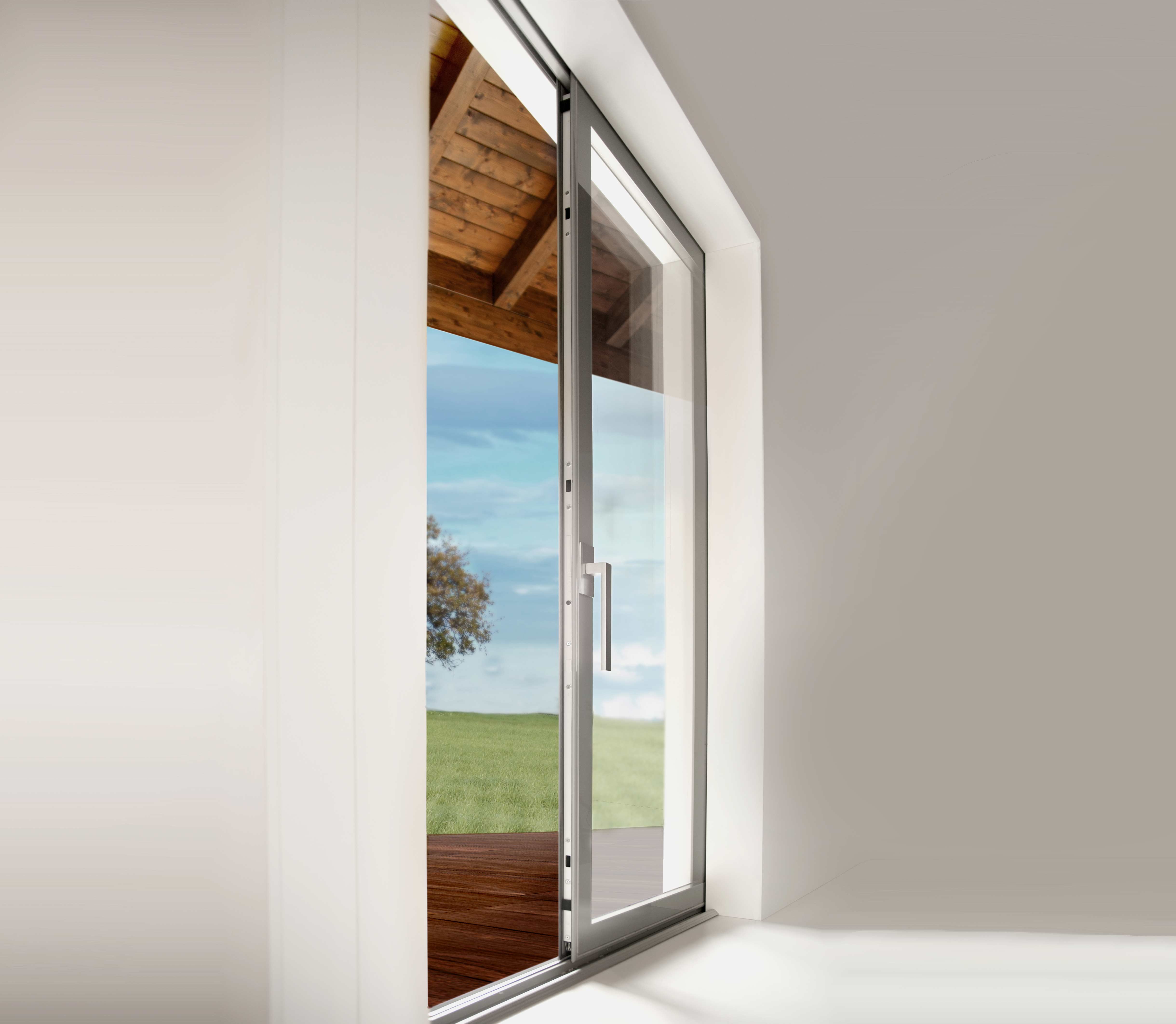

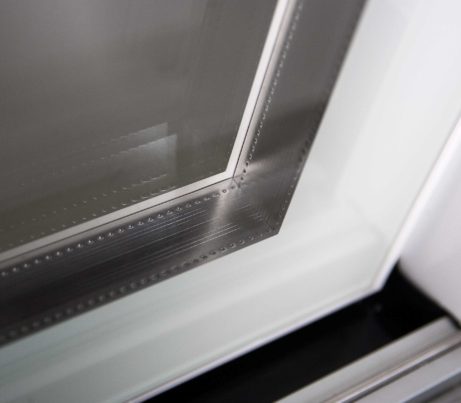

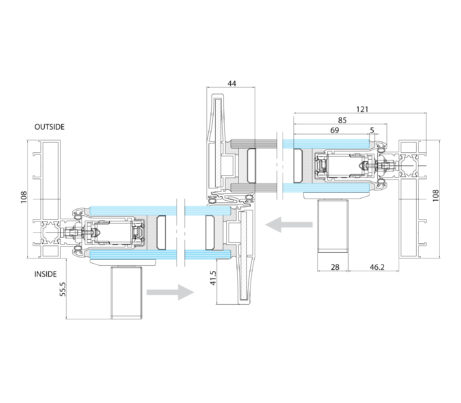

Zero 1 Lift and Slide from ES Finestra: Glass-to-edge sliding doors and windows! When closed the slender glass and aluminium sash drops down into a weathertight, thermoplastic seal. This mechanism, patented by ES Finestra, has been engineered to provide increased thermal performance, reducing cold breaks, increasing soundproofing and generating a U-value of 0.8 w/m2k.

These sleek window design and RAL colour profile options work interchangeably with ES Finestra tilt and turn double chamber glazed casements and fixed pane glazing options.

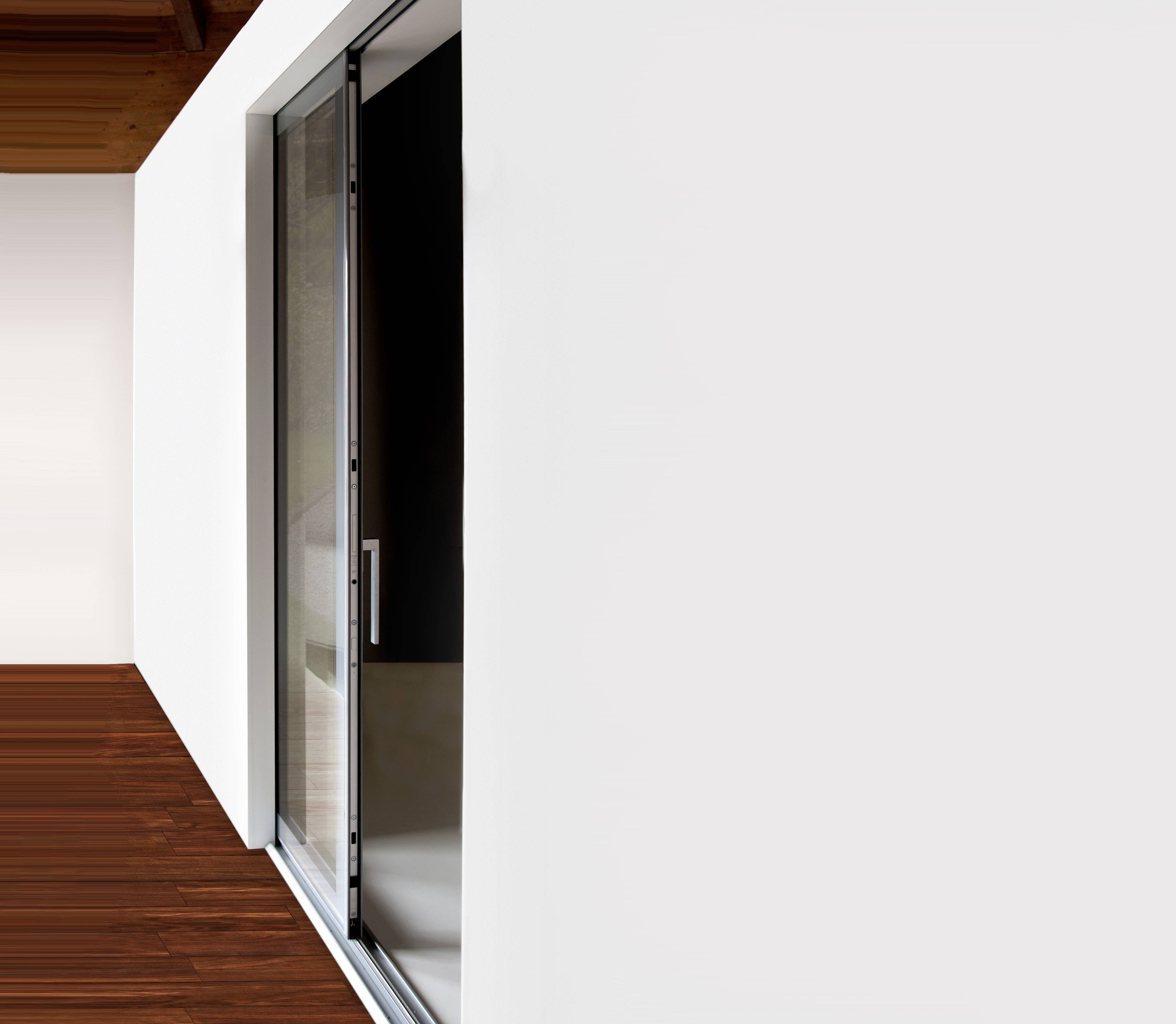

This patio door can also be specified as a pocket door model designed for use in cavity walls.

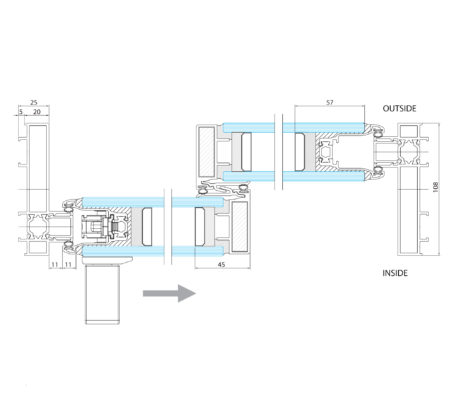

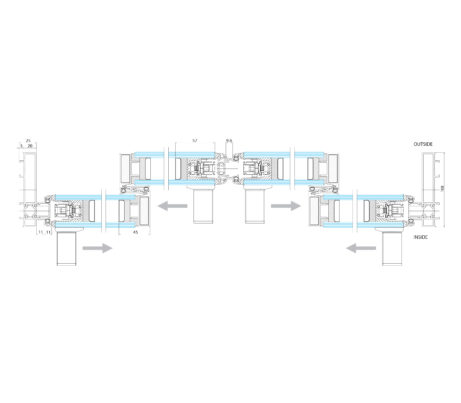

Sliding Systems

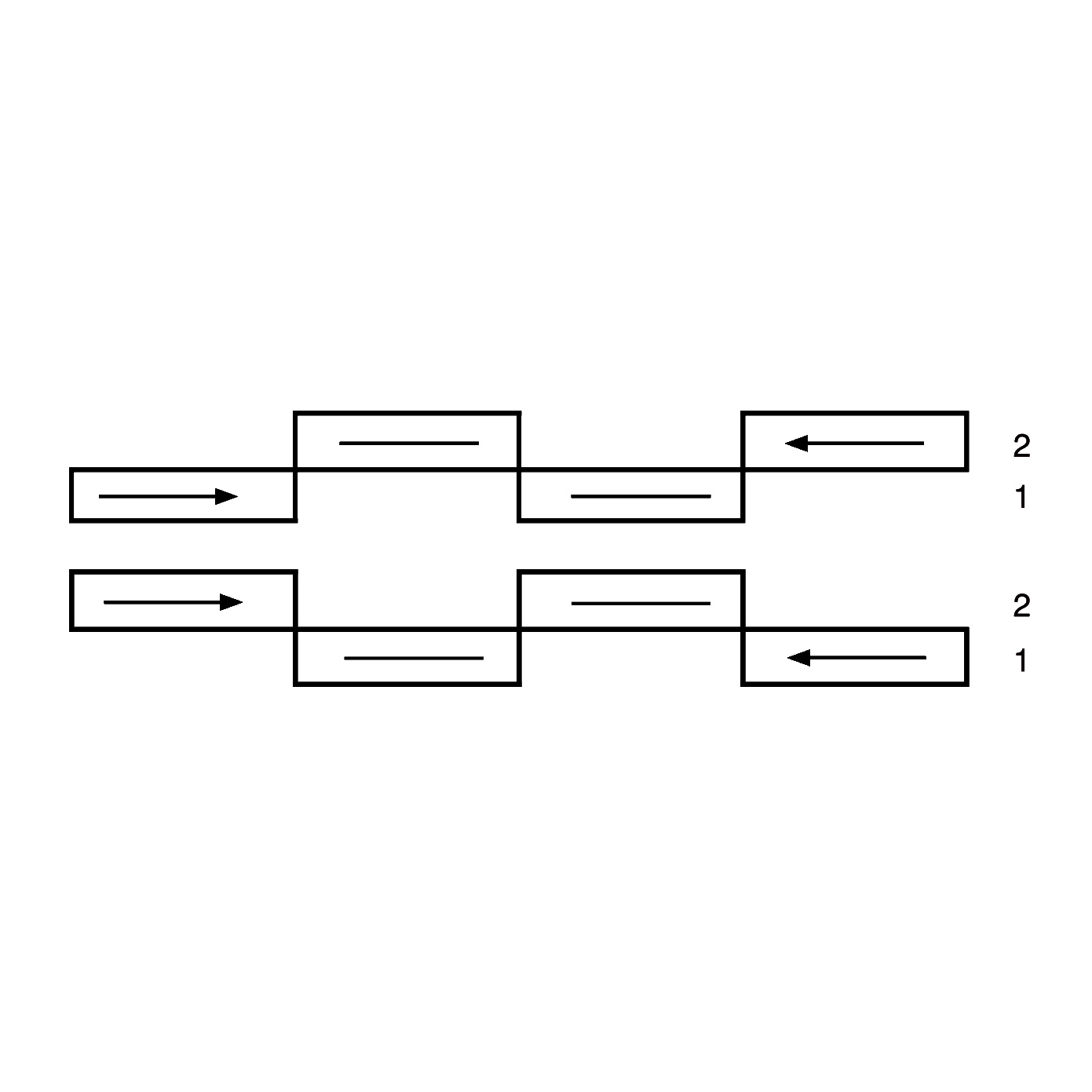

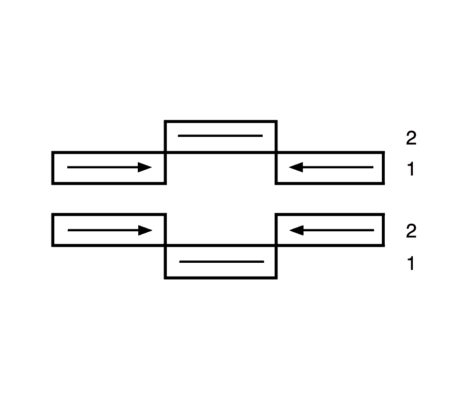

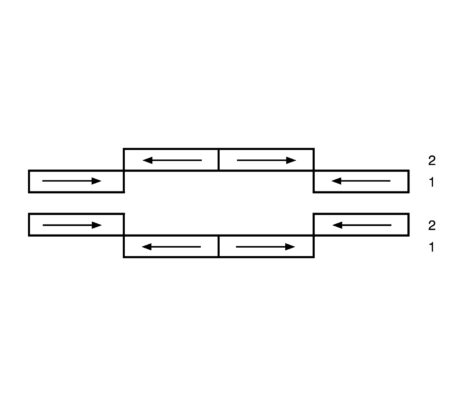

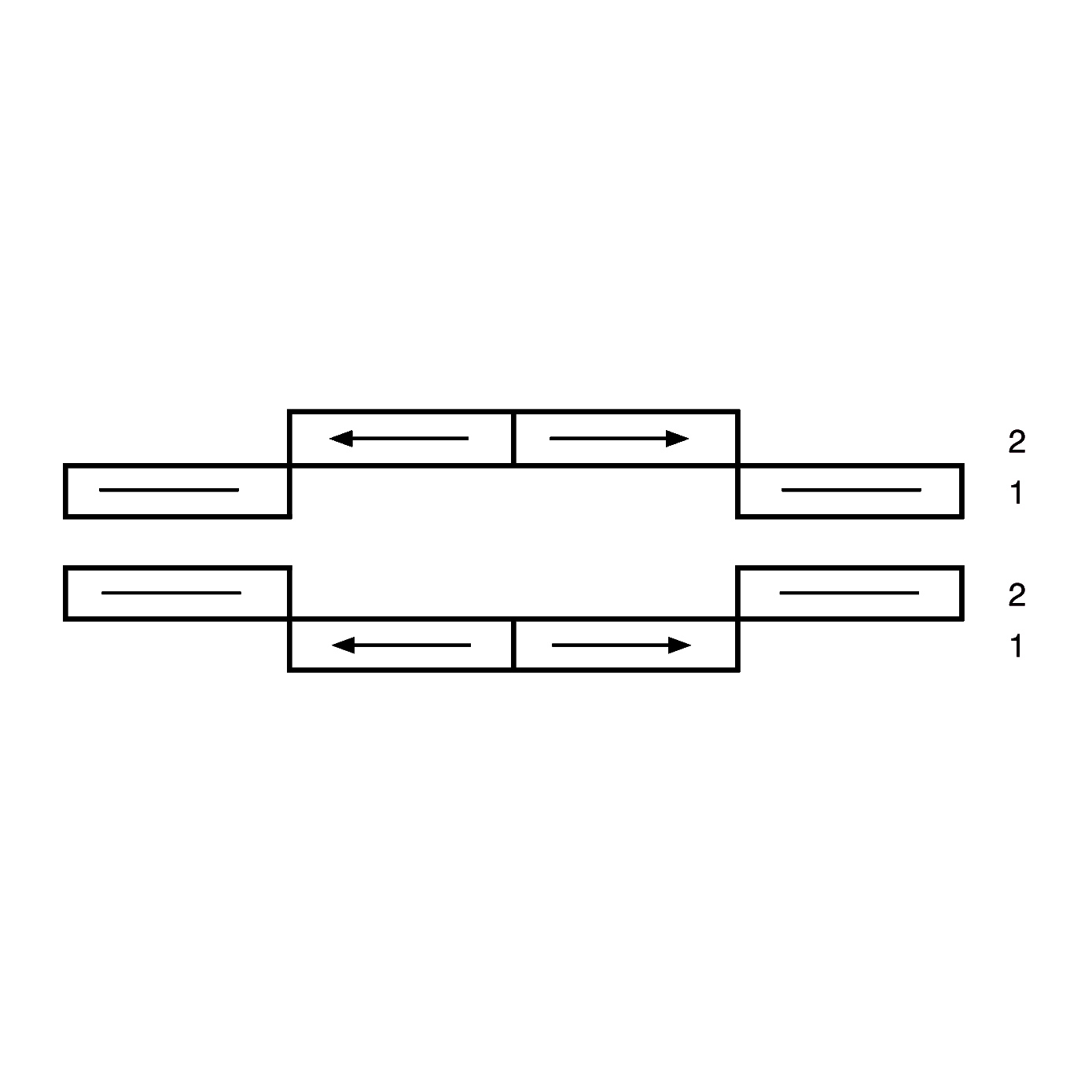

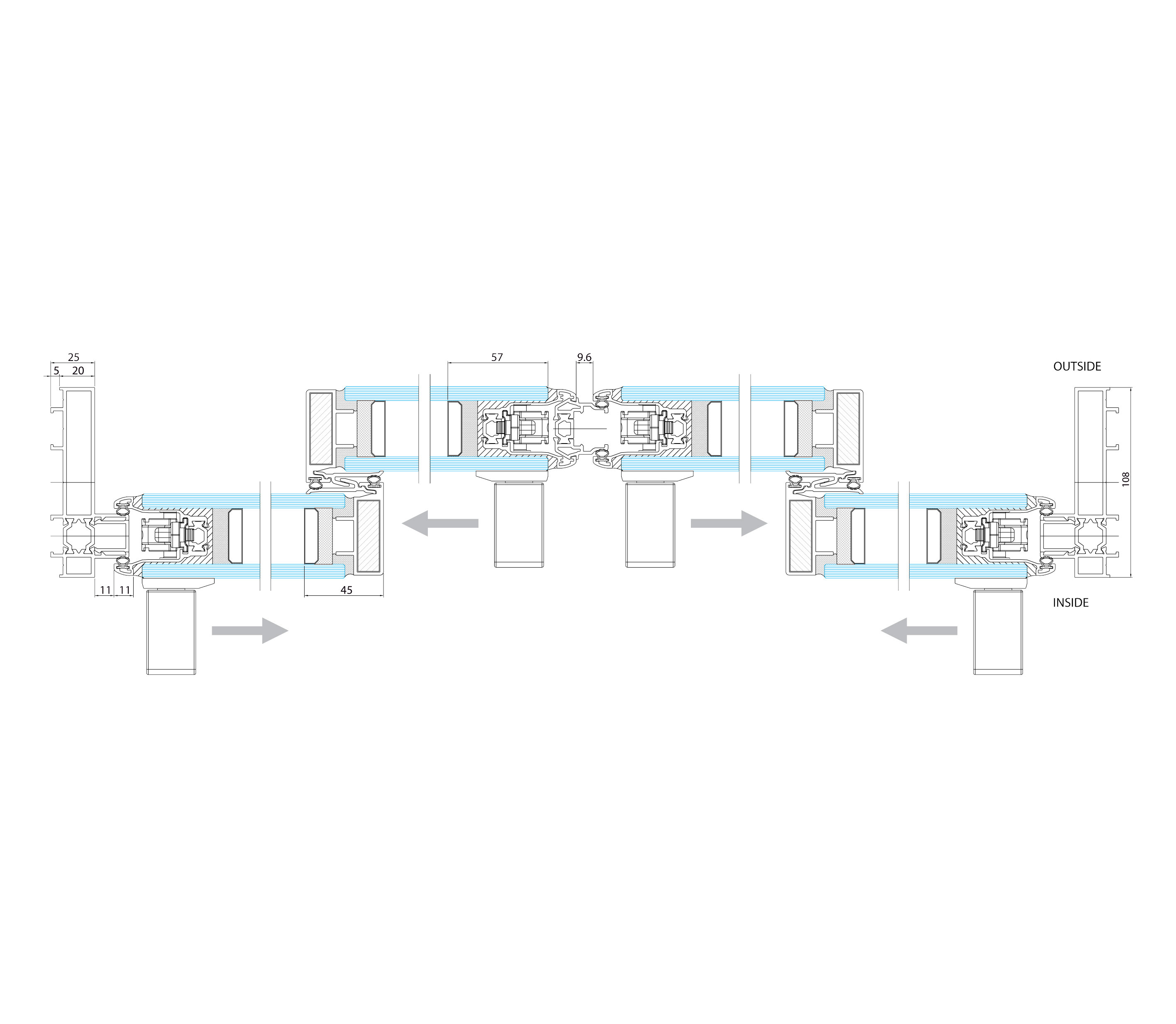

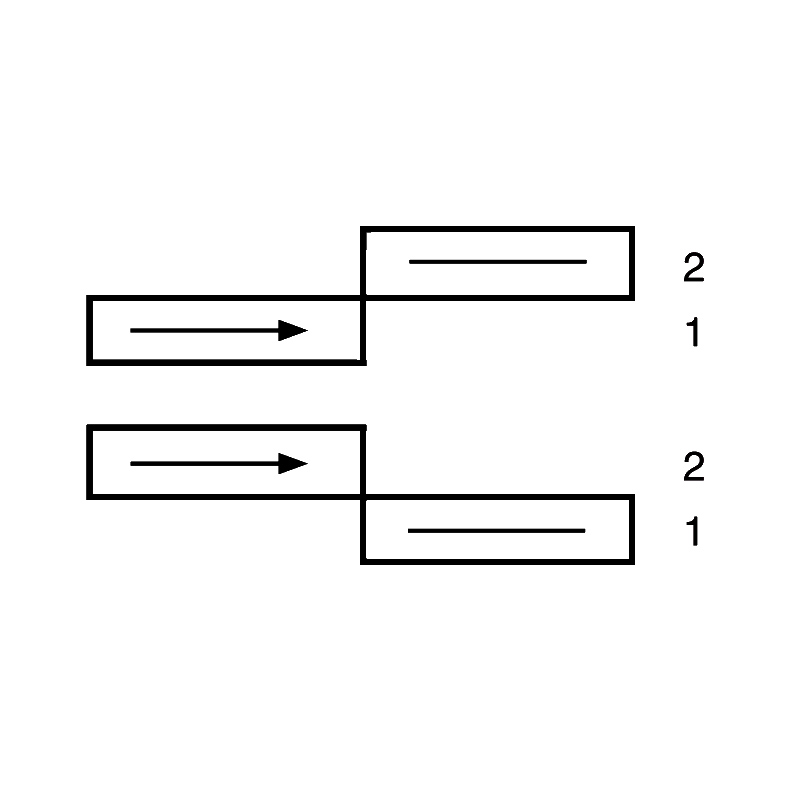

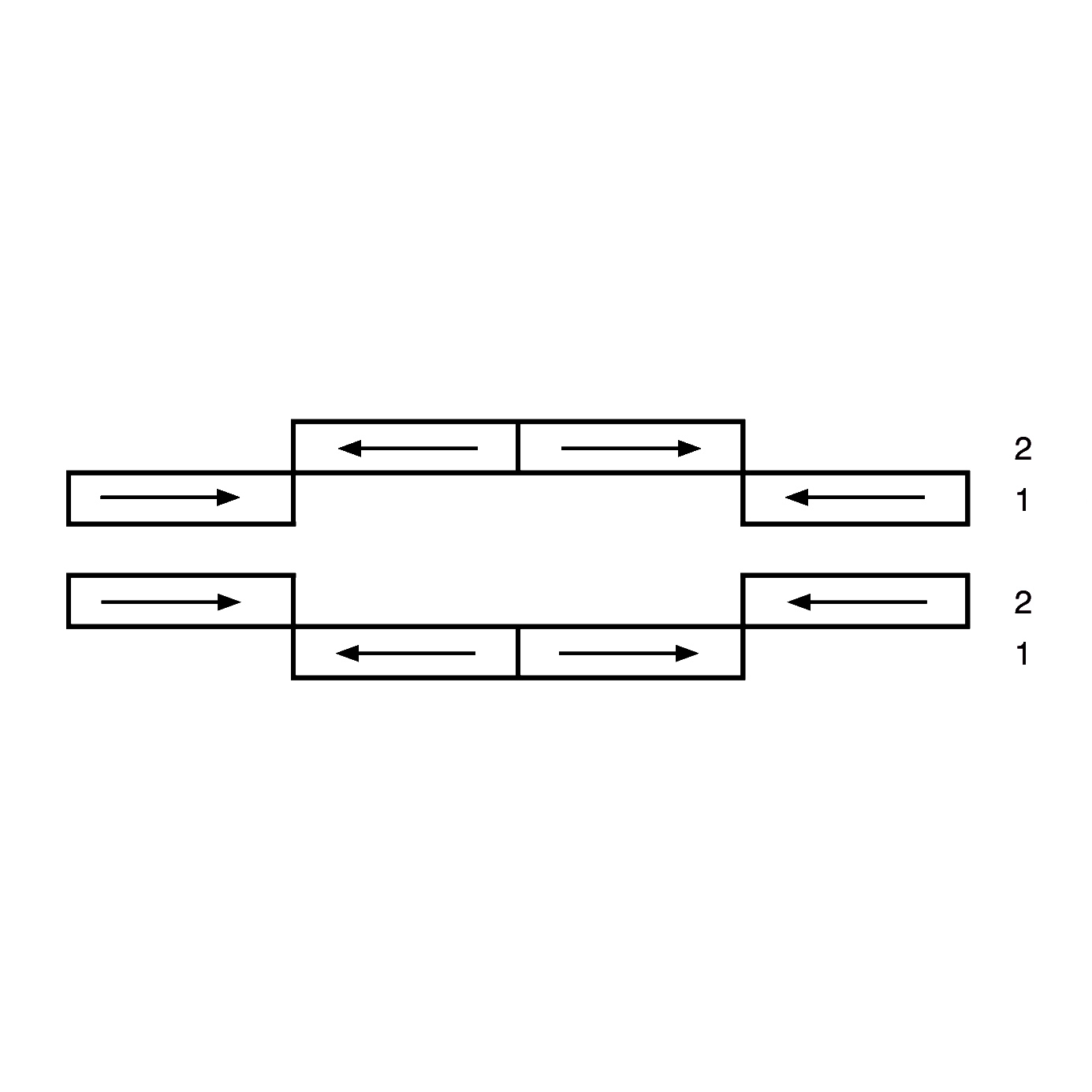

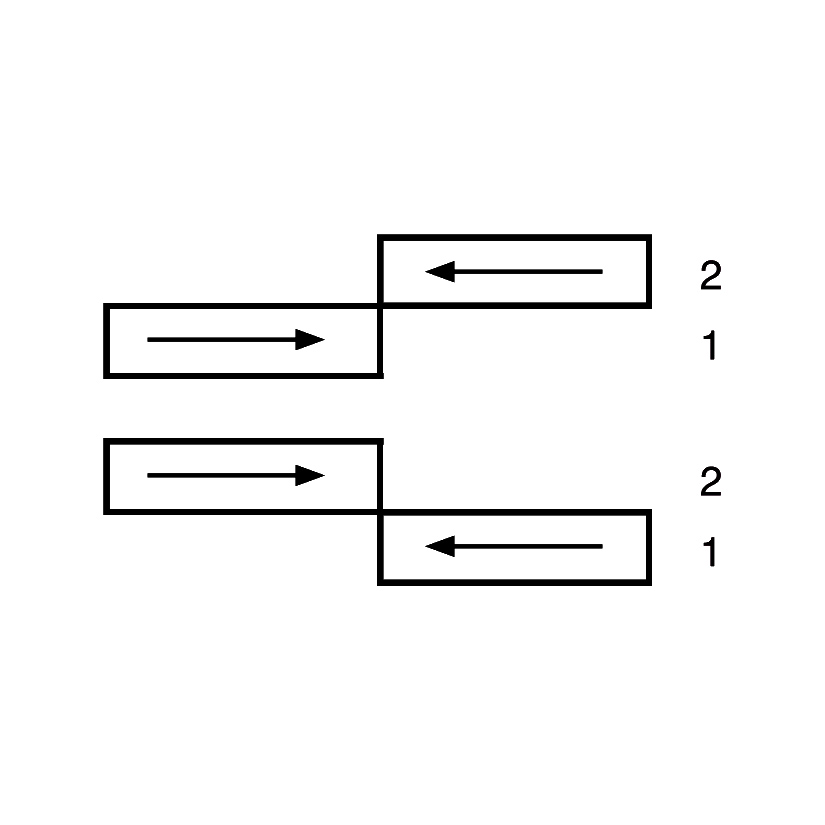

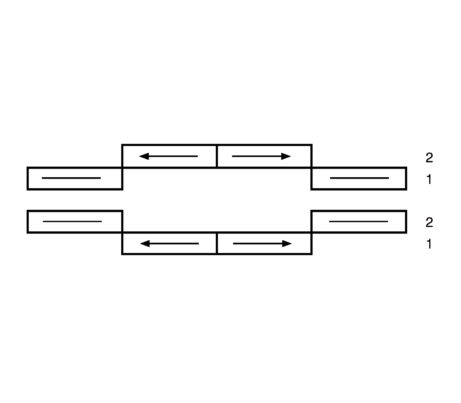

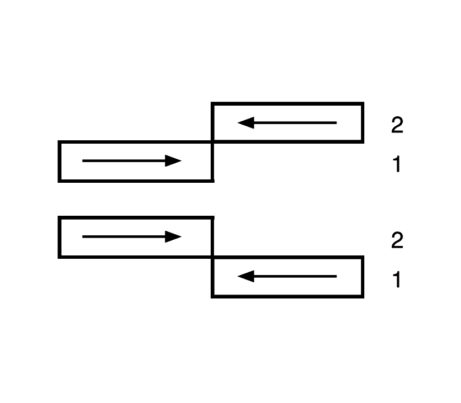

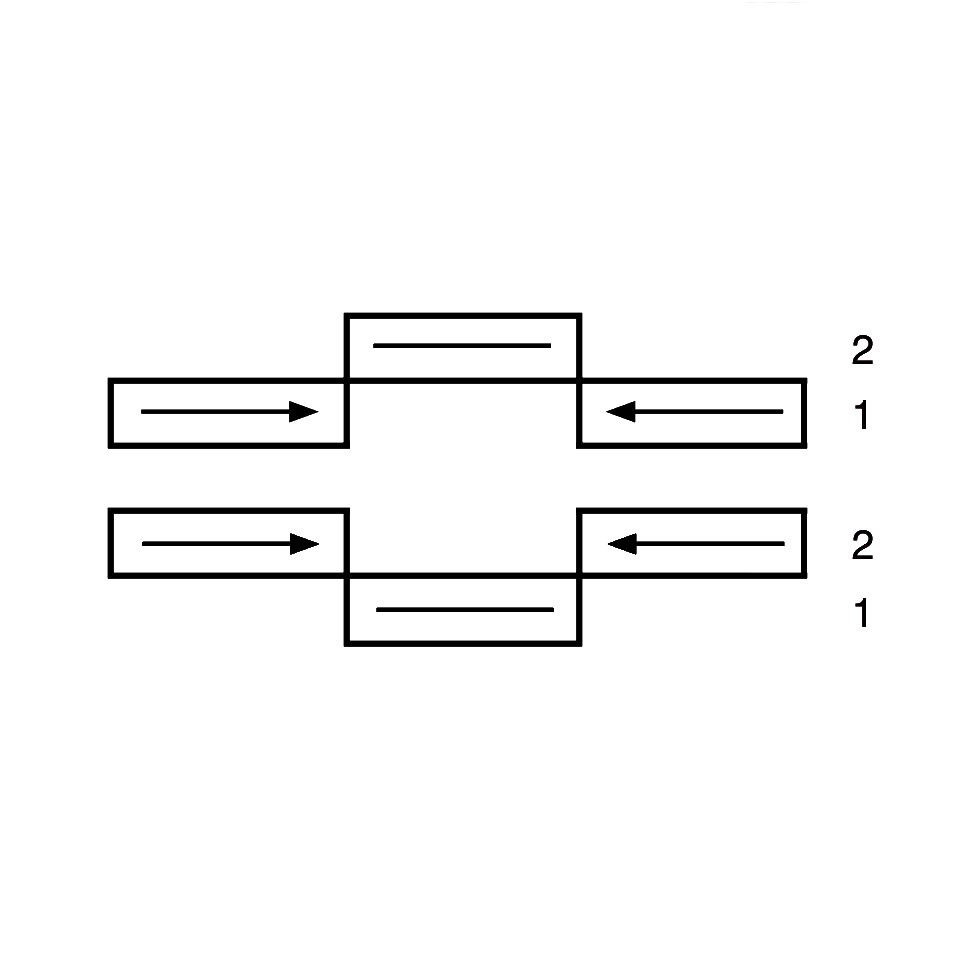

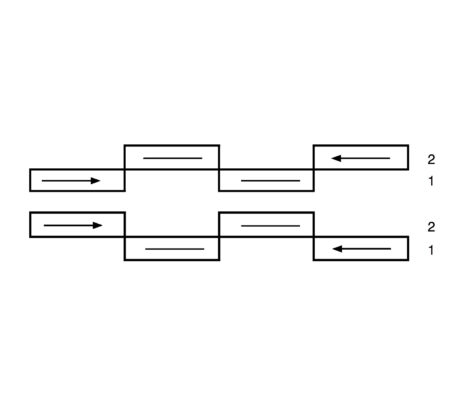

ES Finestra windows lift-and-slide glazing systems can be specified with a number of different fixed and mobile glazing elements and operational systems.

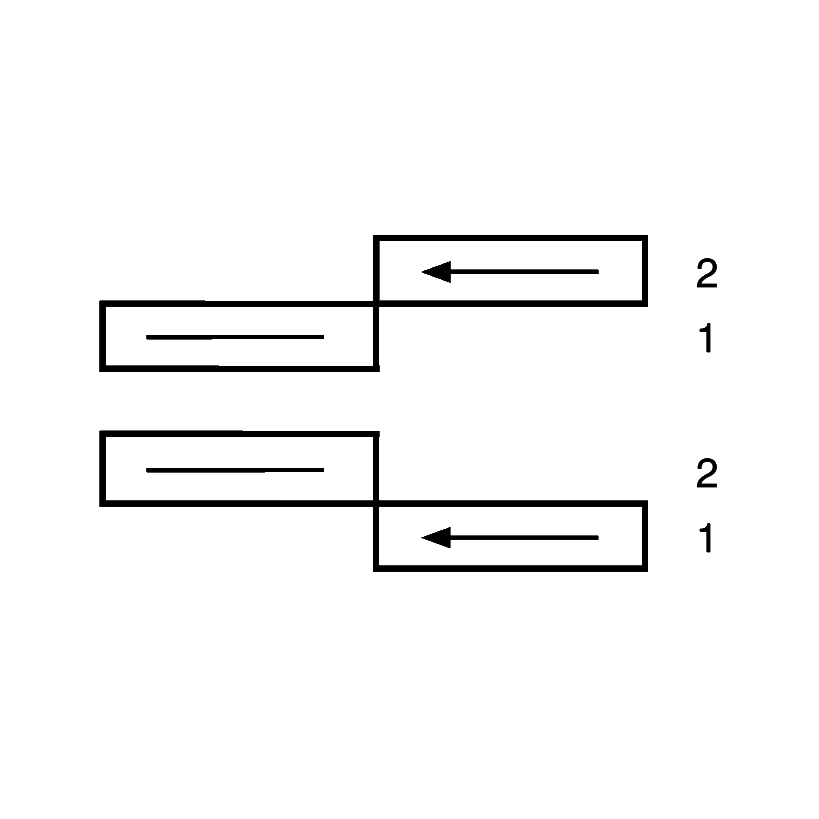

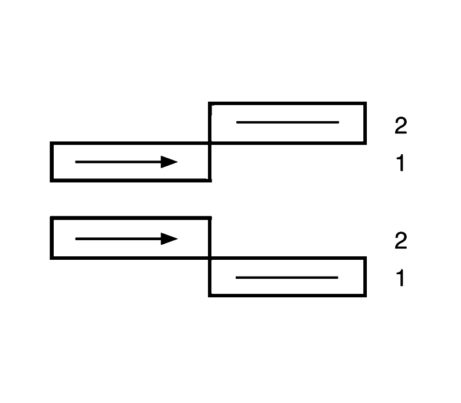

1: Internal track
2: External track

Dimensions

Dimensions – (200 kg/300 kg)

  • Mobile Sash Dimensions
    • Max. Surface Area – (4.3/6 m2)
    • H Ratio – 1:3
    • Min. Sash Dimensions – 1.56 x 0.74 m
  • Fixed Sash Dimensions
    • Mac. Surface Area – 7.2 m2
    • Min. Sash Dimensions – 1.56 x 0.74 m

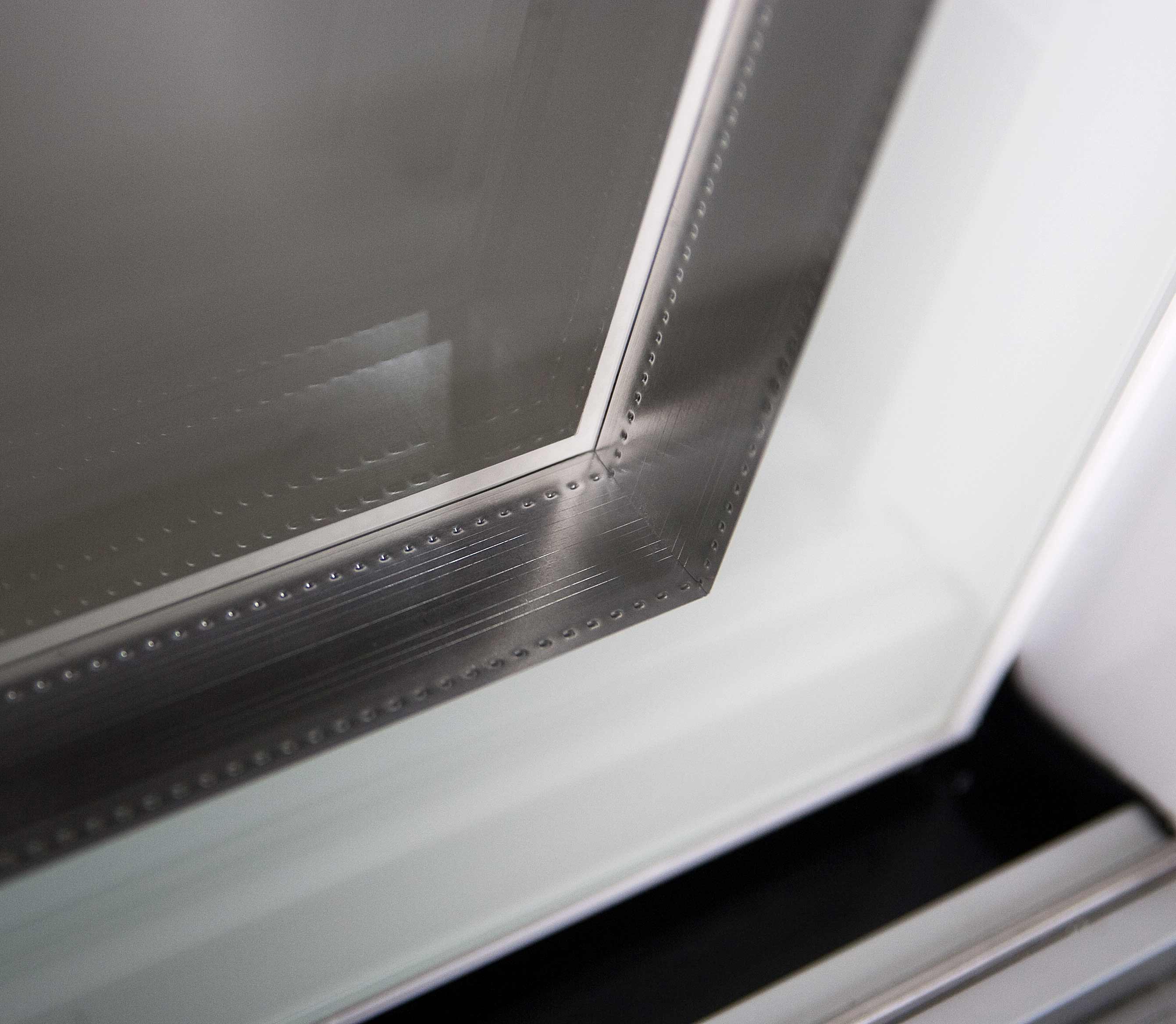

Glazing

  • Double Glazing
    • 4+4/32/8T
    • 8T/32/8T
  • Triple Glazing
    • 4+4/12/6/14/8T
    • 8T/12/6/14/8T

Profile Details

  • ES Finestra Casement Black
    • Frame Profile – Black Oxidated
    • Sash Profile – Black Oxidated
    • Threshold – Black Oxidated
    • Serigraphy – Black
    • Handle – PVD Black
  • ES Finestra Casement White
    • Frame Profile – Painted White RAL 9010
    • Sash Profile – Painted White RAL 9010
    • Threshold – Silver Oxidated
    • Serigraphy – White
    • Handle – Satin-Finished Chrome
  • ES Finestra Casement Grey
    • Frame Profile – Painted Grey RAL 7042
    • Sash Profile – Painted Grey RAL 7042
    • Threshold – Silver Oxidated
    • Serigraphy – Grey
    • Handle – Satin-Finished Chrome

Downloads

ES Finestra Product CataloguesSize
Lift-and-slide french doors with passive house ratingProduct Brochure0.99mb
Technical Brochure2.88mb
